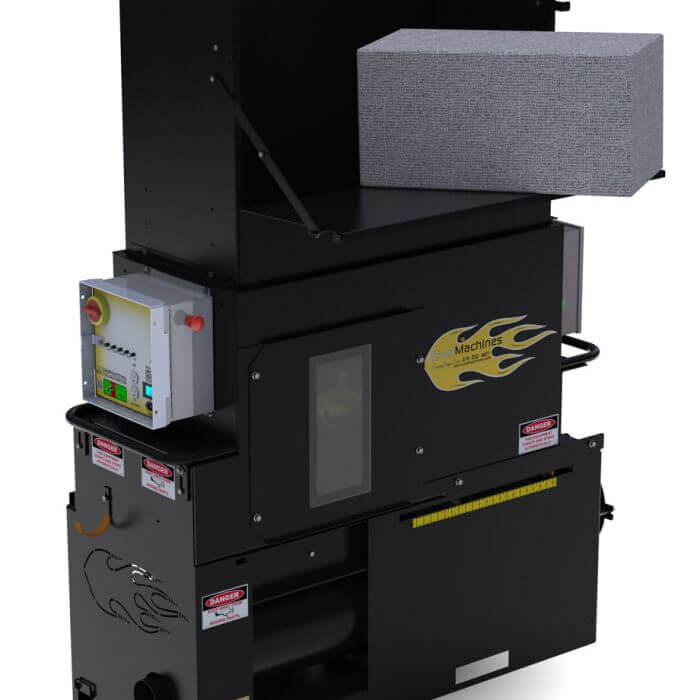

CM-2400

The CM-2400 series machine provides an economical, high production machine with low power requirements and reduced weight/size in your truck/trailer system. The simple design and minimal moving parts provide a machine that is low maintenance and easy to repair.

  • Weight:
    • 879 lbs. (2 Blower Box)
    • 910 lbs. (4 Blower Box)
    • 1217 lbs. (5hp PD Blower)
    • 1257 lbs. (7.5hp PD Blower)
  • Dimensions: 62″L x 23″W x 48″H
    • 62 1/8″L x 25″W x 51″H (Blower Box)
    • 68 ½”L x 25″W x 51″H (PD Blower)
    • 74 ½” – 81 ½” Tall with Hopper Extension
  • Hopper Capacity: 15 ft.3 (26 ft.3 to 29 ft.3 w/ Hopper Extension)
  • Airlock Options:
    • 12” dia. x 12” long, 4.0 ps.. with 3” output tube.
    • 12” dia. x 16” long, 4.0 psi. with 3” output tube.
    • 12” dia. x 20” long, 4.0 psi with 4” output tube
  • Drive Motor Options: 1½  hp. or 2 hp.
  • Blower Options:
    • 13 amp /140 cfm. (2 or 4 Blower Box)
    • 5 hp 165 cfm. (P.D. Blower)
    • 7.5 hp/205 cfm (PD Blower)
  • Power Requirements:
    • 15/30 amp double input, 120 volt (2 Blower Box)
    • 30 amp single input, 240 volt (4 Blower Box or PD Blower)

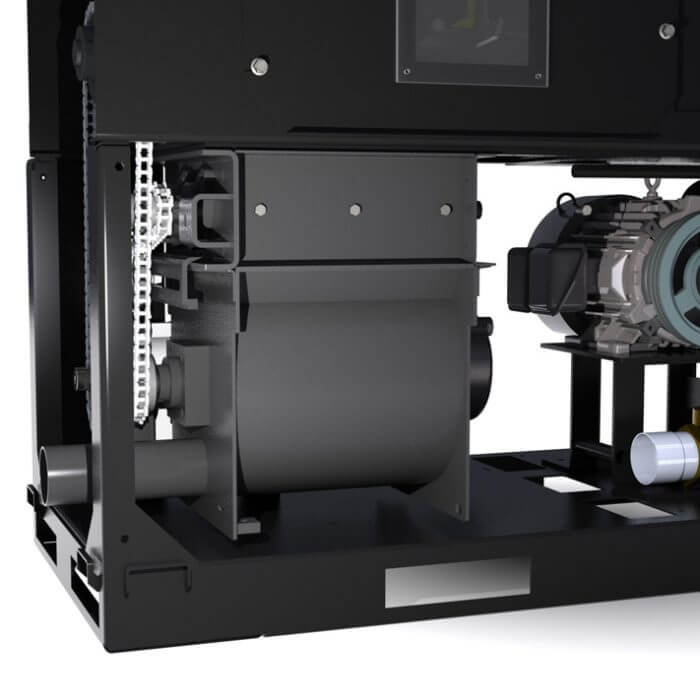

  • 12” Airlock
    • Cellulose: 3000 lbs./hr.
    • Fiberglass: 1200 lbs./hr.
    • Rockwool: 1800 lbs./hr.

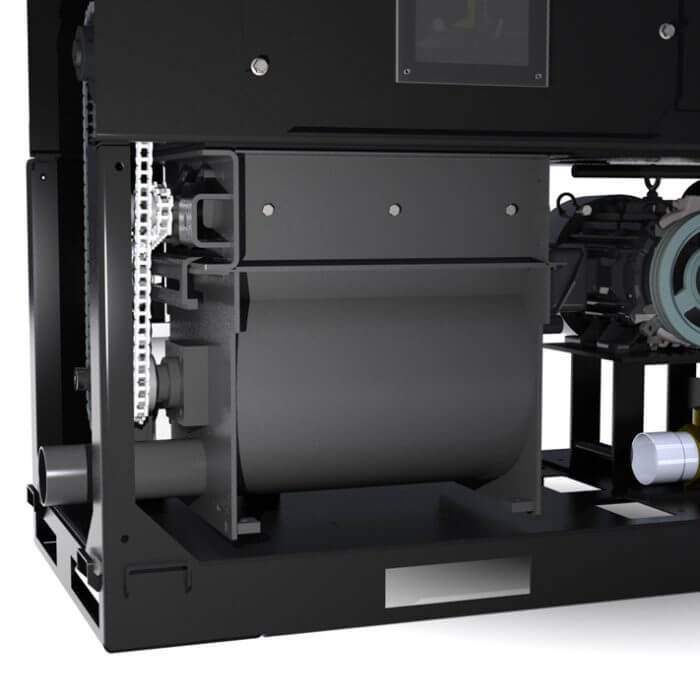

  • 16” Airlock
    • Cellulose: 3600 lbs./hr.
    • Fiberglass: 1400 lbs./hr.
    • Rockwool: 2000 lbs./hr.

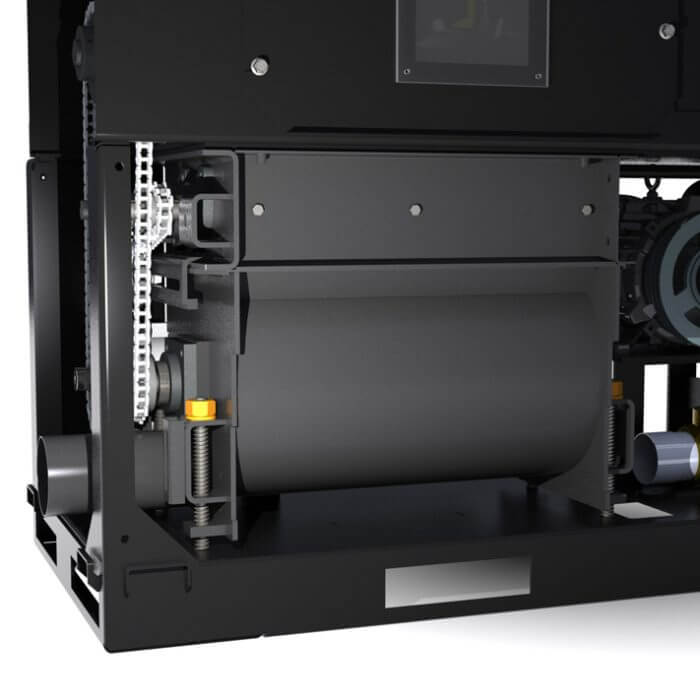

  • 20” Airlock
    • Cellulose: 4500 lbs./hr.
    • Fiberglass: 1800 lbs./hr.
    • Rockwool: 2200 lbs./hr.
