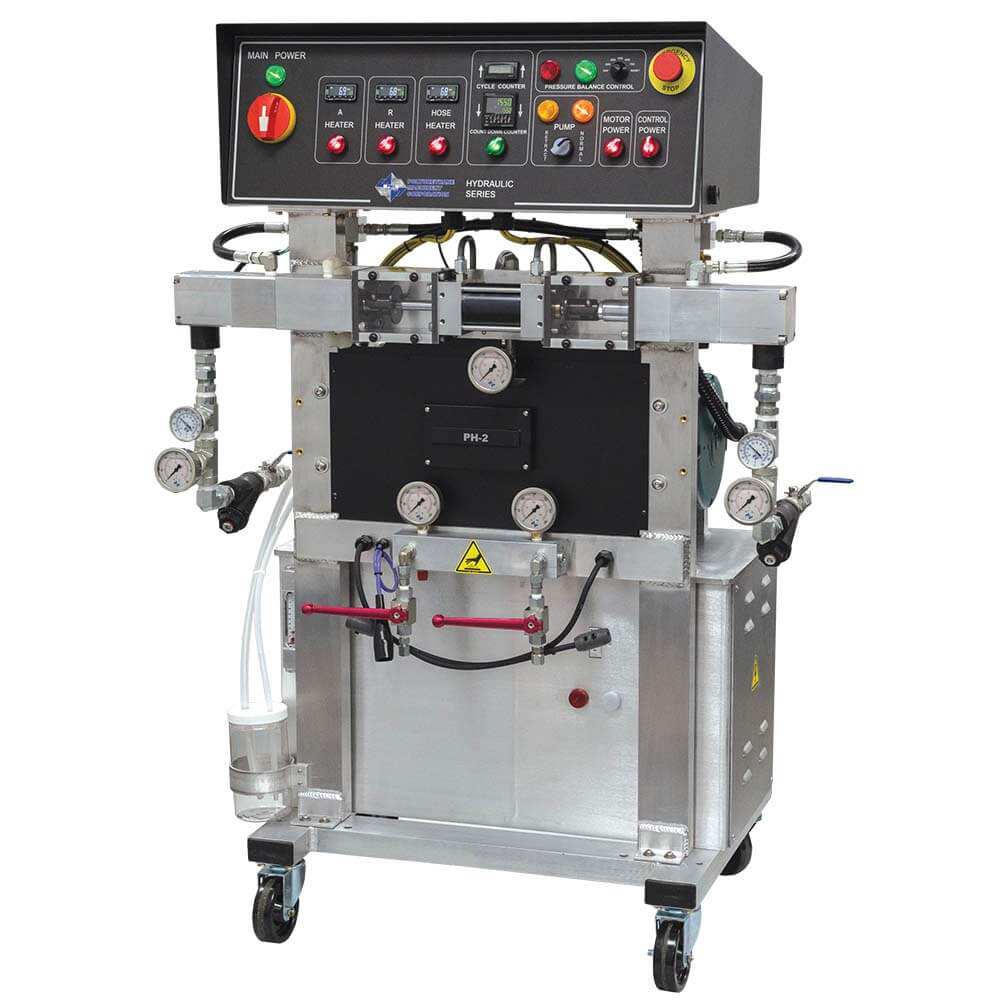

PMC PH-Hybrid

Eliminate the need for two proportioners with the one-size-fits-all PH-Hybrid. Delivering the versatility to spray Foam or Coatings and the reliability of the PH-2, the PH-Hybrid will help you increase profits! Great for residential and light commercial applications, this proportioner features a larger hydraulic reservoir for trouble-free operation in extreme heat and cold.

  • Output: 28 lbs/min (12.70 kg/min)
  • Max Working Pressure: 2,500 psi (138 bar)
  • Max Hose Length:
    • 210 ft (64 m) w/70V Trans
    • 310 ft (94.5 m) w/90V Trans
    • 410 ft (121.9 m) w/120V Trans
  • Heater Wattage:
    • 7,500 watts Total (Single htr)
    • 9,000 watts Total (Single htr)
    • 10,500 watts Total (Single htr)
  • Hose Heating Power: 70 Volt, 90 Volt or 120 Volt
  • Max Fluid Temperature: 190 °F (87.7 °C)
  • Air Consumption @ 100 psi (6.9 bar): Not Applicable
  • Main Voltage: 1 x 208-230V, 60 Hz
  • Electrical @ 230V Single Phase:
    • 66A–7,500W heaters
    • 73A–9,000W heaters
    • 79A–10,500W heaters
    • 94A–14,000W heaters
  • Main Voltage:
    • 3 x 208-230V, 50/60 Hz
    • 3 x 380V, 50/60 Hz
  • Electrical @ 230V Three Phase:
    • 39A–7,500W heaters
    • 43A–9,000W heaters
    • 47A–10,500W heaters
    • 69A–14,000W heaters
  • Dimensions: 44”w x 22”d x 54”h (111 cm x 55 cm x 137 cm)
  • Weight 415 lbs (188 kg)
