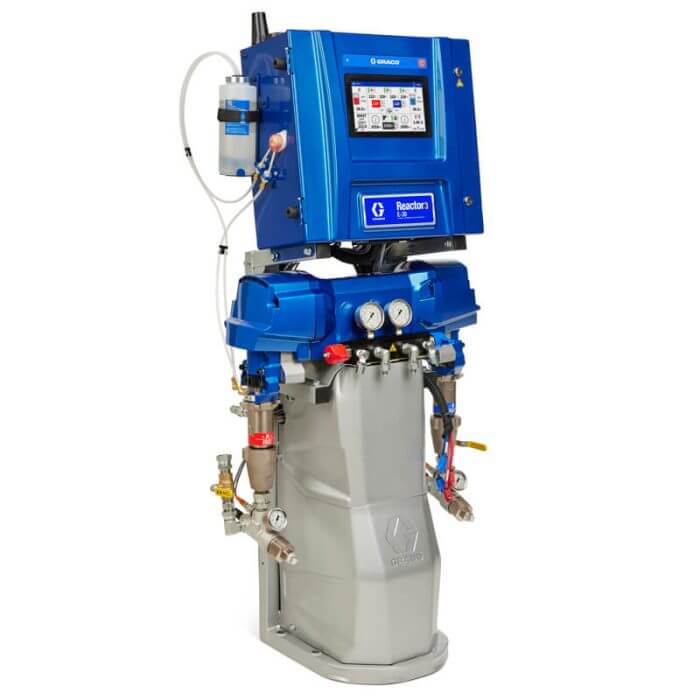

GRACO REACTOR 3 SPRAY FOAM SYSTEM

Upgrade your rig with a powerful NEW Reactor 3 from Graco, built with advanced capabilities for spray foam and polyurea applications. The all NEW Reactor 3 is designed with “drum to gun” technology to simplify the operator’s job, optimize spray parameters and maximize productivity. Additionally, the automation, data-driven tools and analytics that the Reactor 3 offers enable you to spray with unmatched precision job after job and day after day.

Features:

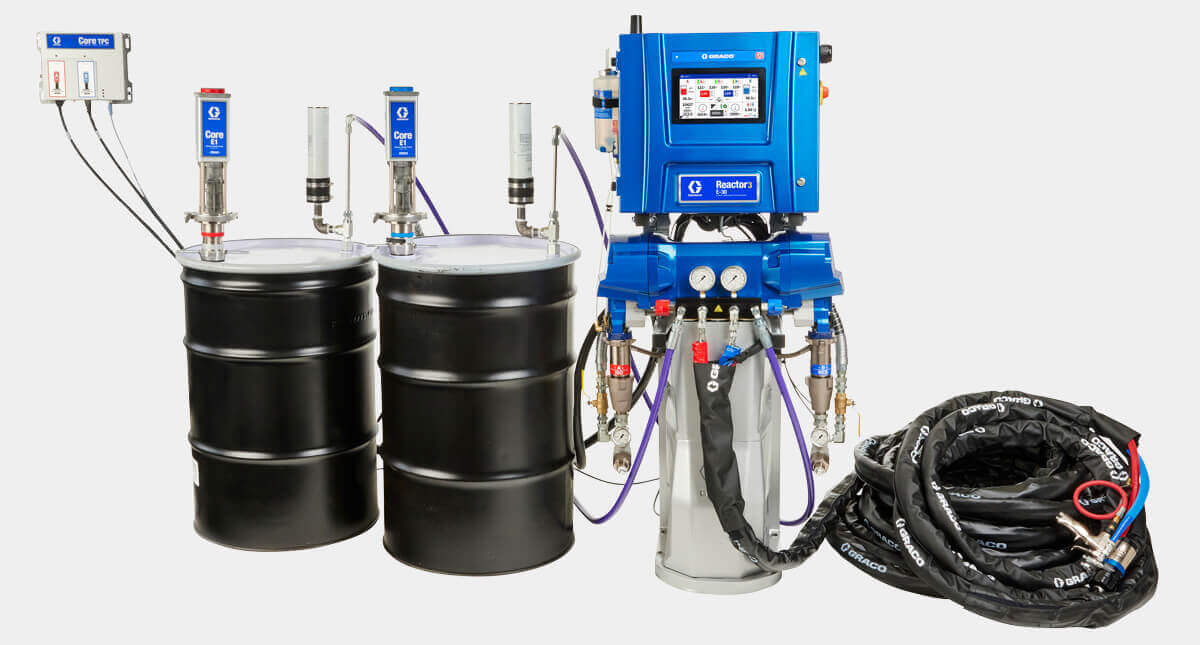

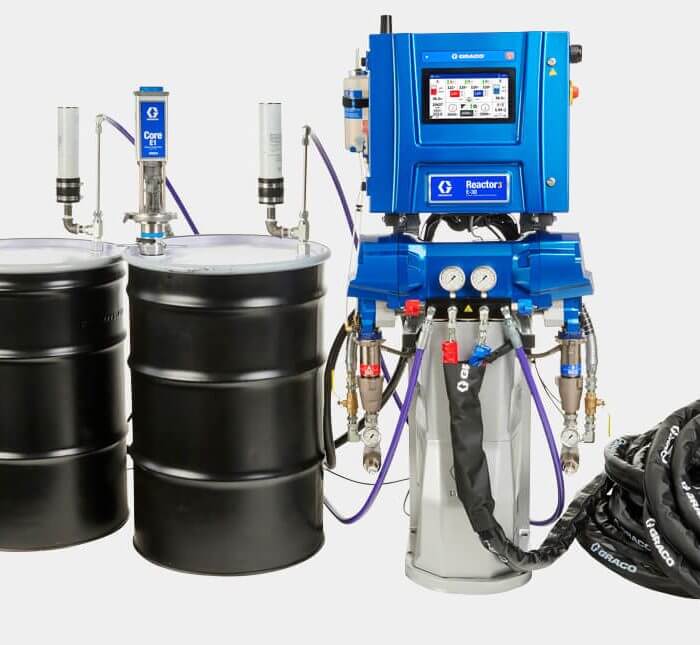

  • When combining the Elite Reactor 3 model along with the Core pumps, you unlock Katalyst, which is the complete “drum to gun” feature that communicates between the CORE transfer pumps and the Reactor to help eliminate the largest causes of Off-Ratio issues!
  • Remote monitoring is always within reach with Reactor connect
  • Built in ISO Lube Pump
  • New Touchscreen Control
  • Independent Hose Control
  • Improved Pressure/Flow Performance
  • Reduced Footprint
Standard Tier
Standard
Pro Tier
Pro
Elite Tier
Elite
FEATURES
Touchscreen ADM
Brushless Motor
Active ISO Lube Pump
Data Download with USB
Simple Inlet Filters (Y-strainers)
Large Easy-Access Inlet Filters
Small Recirculation Valves
Large Recirculation Valves
Large Heater Options
Reactor Connect Cell Module
Drum-Level Dipsticks
Katalyst Full System Control
Ratio Assurance
Inlet Temperature & Pressure Sensors
Generator Dashboard
Optimized for Core E1 Transfer Pumps
SOFTWARE
Independent A & B Hose Heat
Resistence Control Mode
Auto Pressure Balance
Power Management
Automatic Software Updates via Cellular
Smart Control
Smart Supply
INCLUDES
Externally Heated (EH) Hose Packages Available Yes Yes Yes
Internally Heated (IH) Hose Packages Available Yes Yes Yes
Whip Hose Length 10 ft in EH packages,
20 ft in IH packages
10 ft in EH packages,
20 ft in IH packages
20 ft
Single Heated Hose Package 1 x 50 ft EH or IH packages 1 x 50 ft EH or IH packages 1 x 50 ft EH or IH packages
Multi Heated Hose Package 4 x 50 ft EH package, 2 x 100 ft IH package 4 x 50 ft EH package, 2 x 100 ft IH package 4 x 50 ft EH package, 2 x 100 ft IH package
Engine Cable No No Yes
Packages with Core E1 Pumps Available No No Yes
Standard Tier
Standard
Pro Tier
Pro
Elite Tier
Elite
Reactor 3 Model E-20 E-30 E-20 E-30 E-20 E-30
Brushless Motor 1.8 HP 2.5 HP 1.8 HP 2.5 HP 1.8 HP 2.5 HP
Max Flow 2 GPM 3 GPM 2 GPM 3 GPM 2 GPM 3 GPM
Max Pressure 2000 psi 2000 psi 2000 psi 2000 psi 2000 psi 2000 psi
Primary Heat 7 kw 10 kW 7 kw 10 kW 10 kW 15 kW 10 kw 15 kW
Heat Block Single Single Single Single Single Dual Single Dual
Max Hose Length 220 ft 320 ft 220 ft 320 ft 220 ft 320 ft

  • ISO Lube Pump
    • Active ISO Lube system with peristaltic pump
    • Automatic timed circulation improves TSL Life
    • Reduced maintenance (No check valves)
    • New larger easy-to-change ISO lube bottle

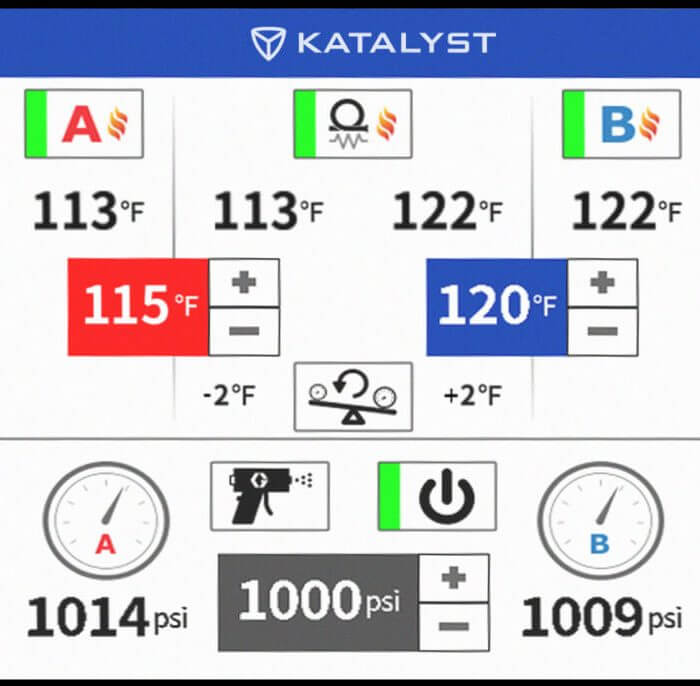

  • Touchscreen Advanced Display Module (ADM)
    • Large new touchscreen interface
    • Intuitive operation and navigation
    • All spray operations from one screen
    • Setup menus offer more controls than ever for owners and managers to optimize the machine for their business needs
  • Independent Hose Control
    • Control A and B materials to different temperatures for improved pressure balancing
    • Optimizes yield
  • Advanced Electric Design
    • Brushless motor for improved pressure/flow performance
    • New temperature control boards for independent hose heat
    • Voltage jumpers for easy changing between voltages
    • Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
  • Reduced Size
    • Reduced footprint provides additional room in your rig
    • Compact design protects the flow meters and hose connections from being damaged in your rig

Related Products

Exploded view of Fusion AP Air Purge Gun

Gun Parts

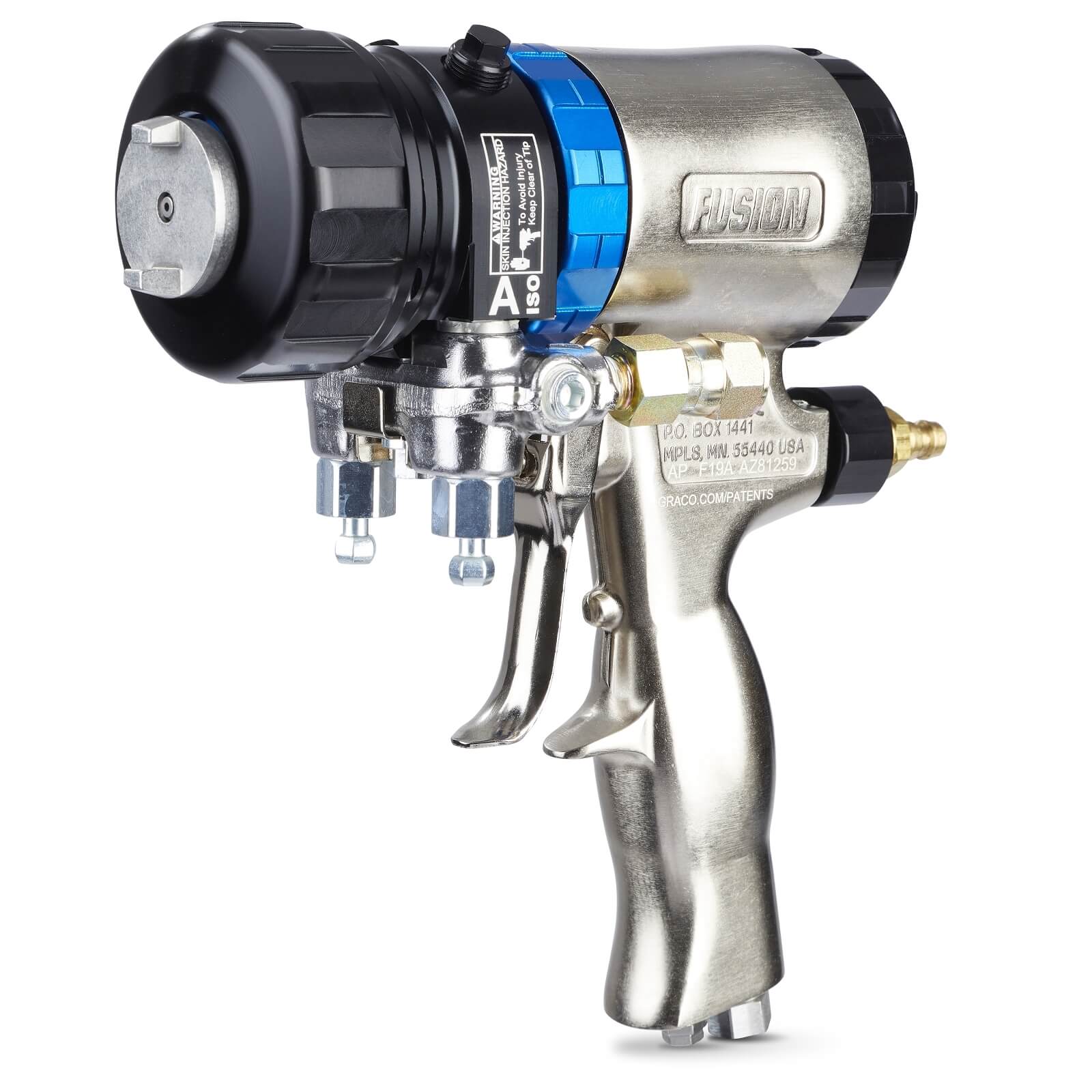

GRACO Fusion Proconnect Gun (PC)

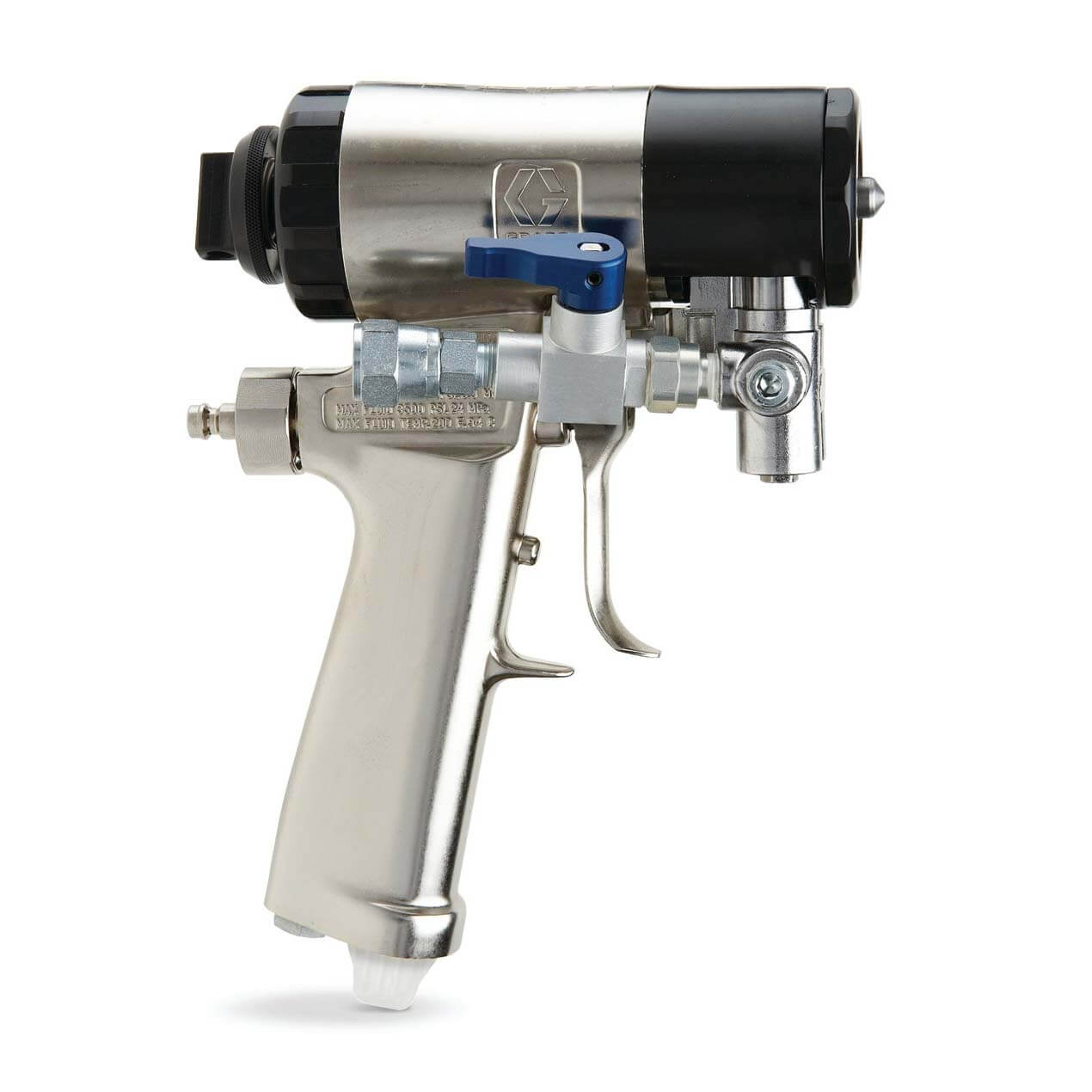

GRACO Fusion Clearshot (CS)

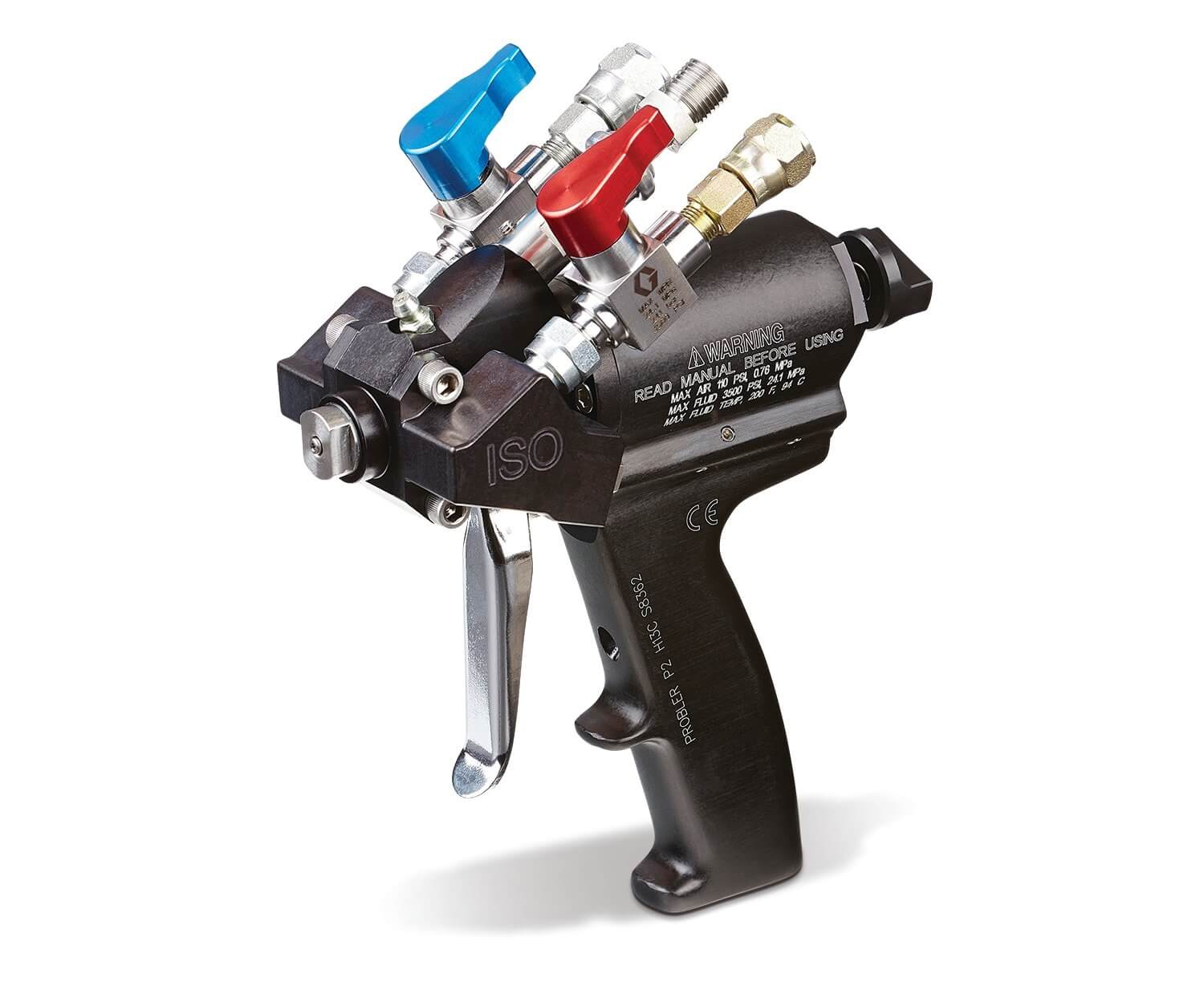

GRACO Probler P2 Air Purge Gun
