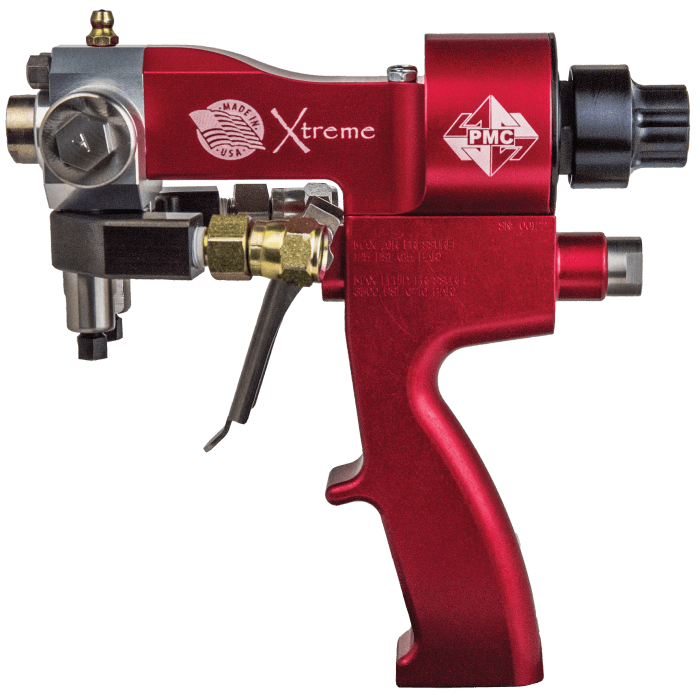

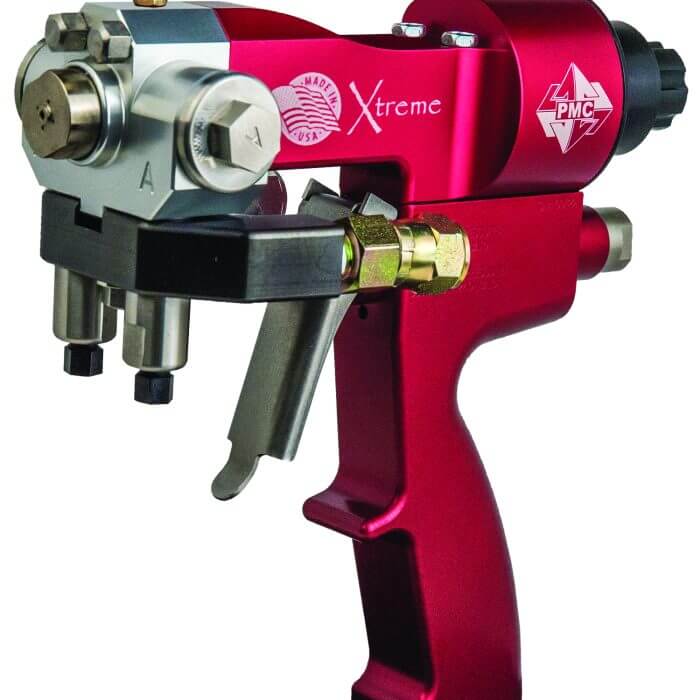

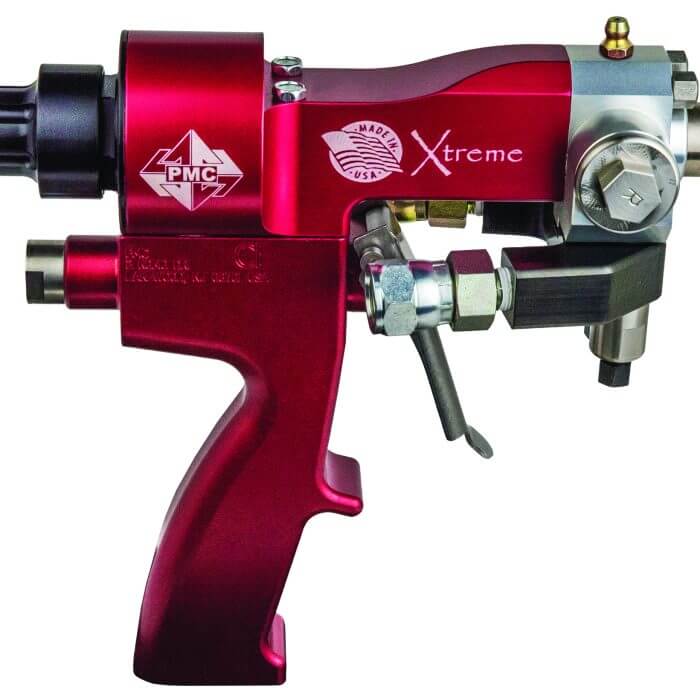

PMC XTREME Spray Gun

Air Purge Spray/Pour Gun for Foam and Coatings

The PMC Xtreme gun offers proven reliability, with as much as 60 sets of material sprayed with the same diamond-plated mixing chamber and engineered resin side seal set. The robust trigger assembly has been improved, moving to a spool and liner designed for increased reliability and consistency. A spring-loaded check valve locks chemicals out of the handle, eliminating material seepage into any of the porting or trigger area.

With fewer parts, less downtime, and more savings for the end user, PMC proudly presents the Xtreme.

  • Your initial investment is $800 less than other gun options, and your annual savings is $2,800-$3,500 per gun in parts!
  • Fewer parts, quicker diagnosis, decreased required maintenance, less down-time = a bigger bonus, and more money in your pocket!
  • Engineered Resin Side Seals – out-performs steel, aerospace-grade, increases productivity
  • Diamond-Plating Mixing Chamber – 36% harder surface, 25% more abrasion resistance, longer-lasting
  • Enhanced Trigger Design – a faster, more robust, air-assisted trigger response and spring-loaded check valve that prevents material on the trigger assembly, on the ports, and within the handle
  • Driving technology in plural component spray guns for residential, commercial, industrial, roofing, and coatings spray applications.

  • Weight (w/o coupling block): 2.4 lbs (1.1 kg)
  • Weight (w/coupling block): 3.1 lbs (1.4 kg)
  • Maximum Working Pressure: 3,500 psi (245 bar)
  • Maximum Air Pressure: 125 psi (8.6 bar)
  • Maximum Production (1:1 Ratio): 50 lbs/min (22.7 L/min)
  • Minimum Production (1:1 Ratio): 3.1 lbs/min (1.55 L/min)
  • Dimensions: 7.1”H x 3.4”W x 7.5” L (181mm x 87mm x 189mm)
